| Place of Origin: | China |
| Nazwa handlowa: | XD |
| Orzecznictwo: | CE / ISO9001 |
| Model Number: | 440 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Cena: | Negotiable |
| Packaging Details: | standard heat treated wooden case |
| Delivery Time: | 15 days |
| Zasady płatności: | TT LC |
| Supply Ability: | 20 sets per month |
| Axis number:: | 4 axis | Servo brand:: | Sanyo denki |
|---|---|---|---|
| Optional tools:: | Spring length gauge | Machine painting:: | Blue |
| Package:: | Wooden case | Gross weight:: | 1700kgs |
| High Light: | spring coiler,spring coiling machinery |
||
Durable 220 Volt Spring Making Machinery High Speed And Precision Four Axis

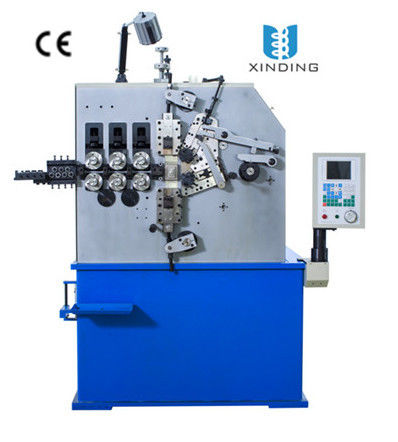

XD-440 four axis spring coiling machine
Our Products
Compression spring machines: XD-208, XD-220, XD-230, XD-235, XD-345 series and
versatile spring machine XD-CNC10, XD-CNC20 and XD-CNC35 universal series.
Technical Parameter:
| Model: |
XD-440 |
|
Wire diameter: |
φ1.5～4.0 mm |
|
Axes: |
2 axes |
|
Maximum Outside Diameter: |
70 mm |
|
Maximum Feeding Length: |
unlimited |
|
Maximum Manufacture Speed: |
150pcs/min |
|
Wire Feed Servo Motor: |
3.8 KW |
|
Pitch Servo Motor: |
1.5 KW |
|
Upper Cutter Servo Motor: |
2.7 KW |
|
Bottom Cutter Servo Motor: |
2.7 KW |
|
Power AC: |
3-Phase 220V |
|
Dimensions (L*D*H): |
1600X1200X1800mm |
|
Wooden Case Dimensions |
1700x1300x2000mm |
|
Machine Weight: |
1600Kg |
|
Gross Weights |
1700Kg |
Details:
1. XD-440 compression spring machine is a 4-axis spring machine consisting of wire feeding axis, pitch axis and cam axis. The spring machine’s two axes can act independently of synchronously by build the progra.
2. 9.7" control panel ,easy to operate,
3. Cam can be moved clockwise or anti –clockwise:wire feed length can be changed while running the machine,
4. Computer can automatically detect the temperature of the motor and slow down the running speed to protect the motor from overheating,
5. Compute can automatically decelerate according to the timing when the probe should be used,
6. Prodution speed can be increased or decreased at any ting running the machine,
7. Not only does have the convenient mechanization,but also the high speed and accuracy resulted from servo motion system.
Applicated products:
