| Place of Origin: | China |
| Nazwa handlowa: | XD |
| Orzecznictwo: | CE / ISO9001 |
| Model Number: | CNC35 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Cena: | negotiable |
| Packaging Details: | Standard heat treated wooden case |
| Delivery Time: | 20 days |
| Zasady płatności: | TT LC |
| Supply Ability: | 20 sets per month |
| Axis number:: | 3 | Servo brand:: | Sanyo denki |
|---|---|---|---|
| Power ac:: | 3-phase 220v 50hz | Machine painting:: | Blue |
| Package:: | Wooden case | Gross weight:: | 1400kgs |
| Podkreślić: | spring making machinery,spring coiler machines |
||

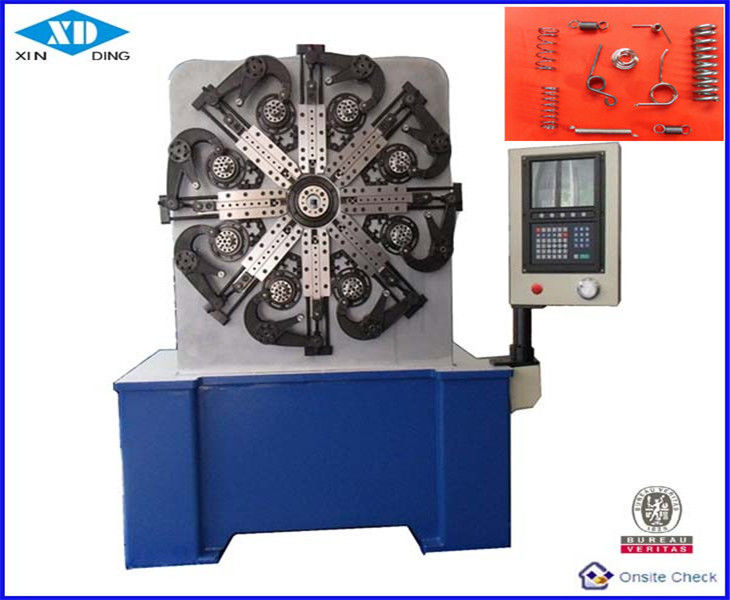

3-axis XD-CNC35 Universal spring making machine for springs and clips
Technical Parameter:
|
Model: |
XD-CNC35 |
|
Wire diameter: |
φ1.8～3.5 mm |
|
Axes: |
3-4 axes |
|
Maximum Outside Diameter: |
70mm |
|
Maximum Feeding Length: |
unlimited |
|
Maximum Manufacture Speed: |
100pcs/min |
|
Feed Speed |
150m/min |
|
Memory Number: |
100 PCS |
|
Wire Feed Servo Motor: |
5.5 KW |
|
Cam Servo Motor: |
5.5 KW |
|
Quin Servo Motor |
1 KW |
|
Power AC: |
220V 3P 50/60Hz |
|
Dimensions (L*D*H): |
1800X140X800MM |
|
Wooden Case Dimensions |
2000x1600x1200mm |
|
Machine Weight: |
1300Kg |
|
Gross Weights |
1400Kg |
Details:
1. CNC35 universal spring machine consists of cam axis, wire feeding axis, rotation core and rolling axis. The mechanical part has eight sets of sliding blocks. The winch and cam rotation have three mechanical part has eight sets of sliding blocks. The winch and cam rotation have three mechanical action types.
2. The computerized cam rotation system can be set from 0.1-359.9°, every two wire feeding wheels constitutes of one group, totally two groups.
3. The spring machine rotation core system is installed on the axis. The axis can rotate leftwards and rightwards. The rolling axis is installed on the sliding house. The cam drives it rotate 360°, also can control direction action or designated moves back and forth.
4. Optional accessories: Cutting tools, rolling axis, safety door.
Sample spring:
